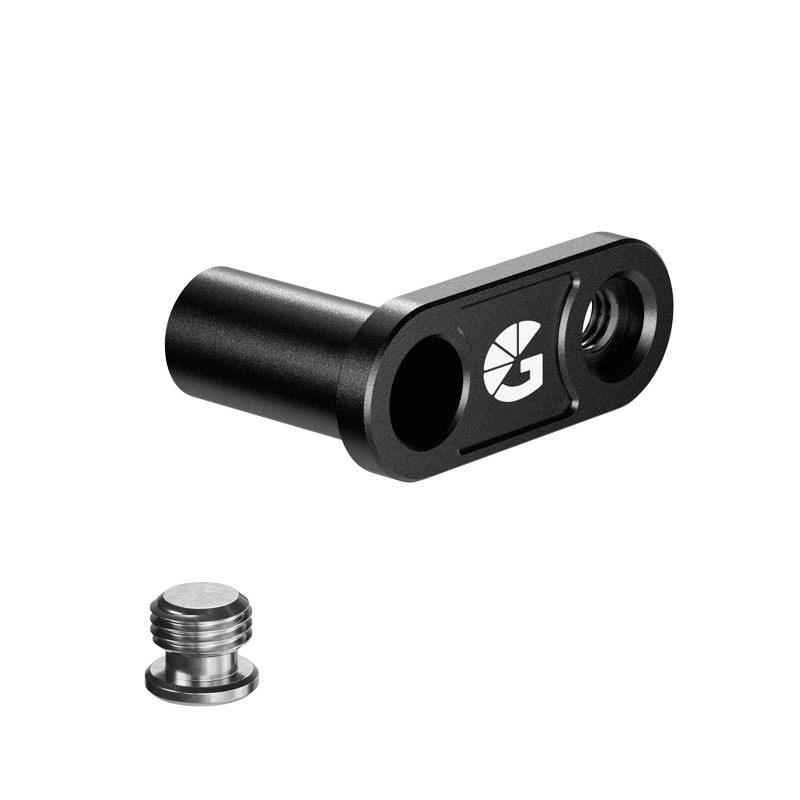

Monitor Mount for DSMC3 RED Touch

Description

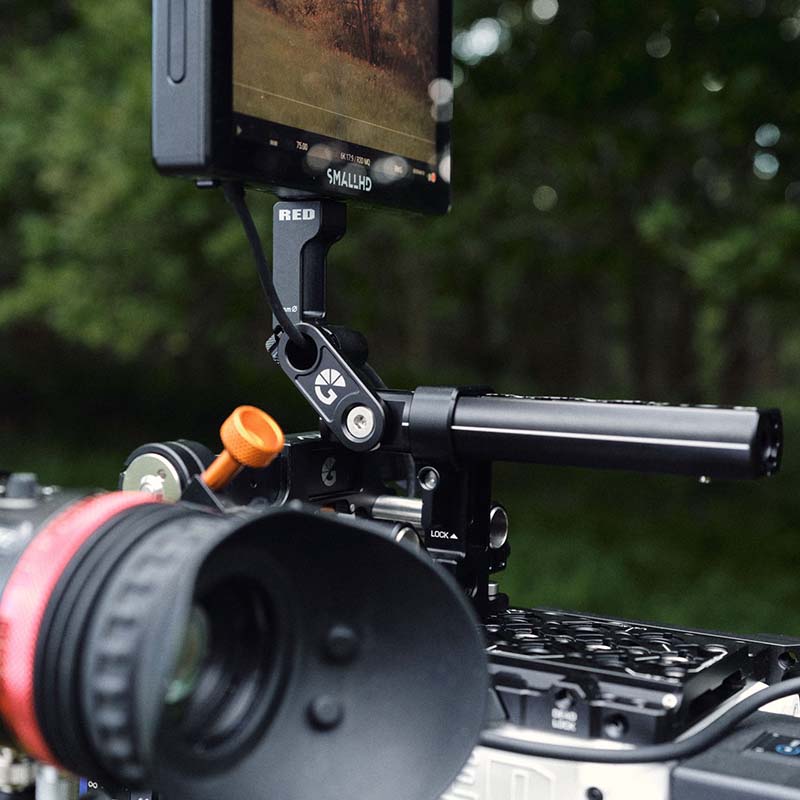

Give yourself freedom with the Monitor Mount for DSMC3 RED Touch, which allows you to relocate the monitor on your RED rig. Mounting via an industry-standard 3/8″ anti-twist point, the Monitor Mount comes with locating pins that can help secure the DSMC3 at your desired angle.

Mounting safely and securely to our Sliding Top Handle, the Monitor Mount for DSMC3 RED Touch is an exceptional addition to any RED filmmaker’s setup.

Low Profile

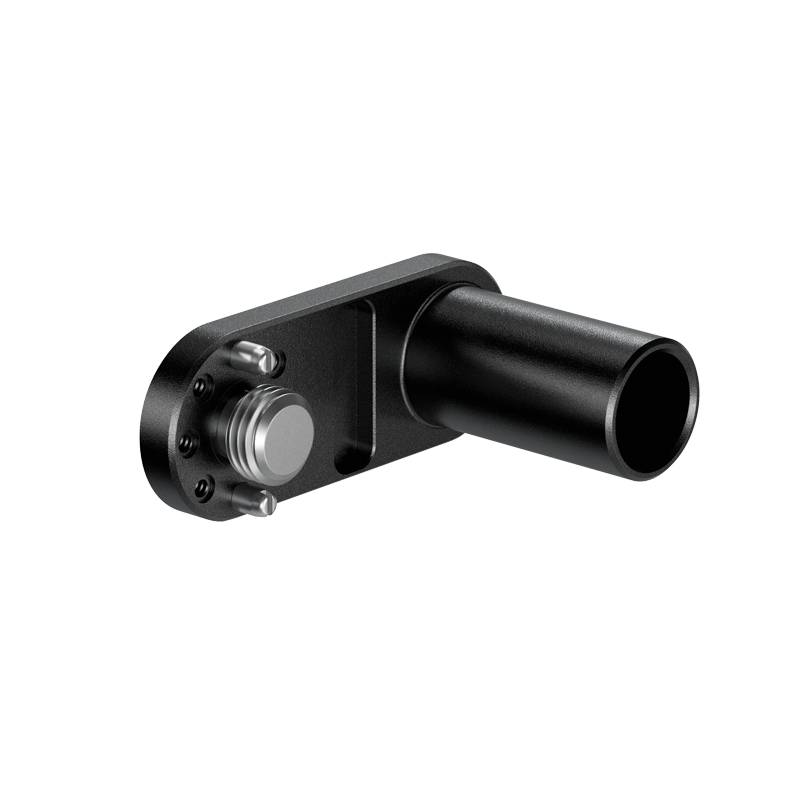

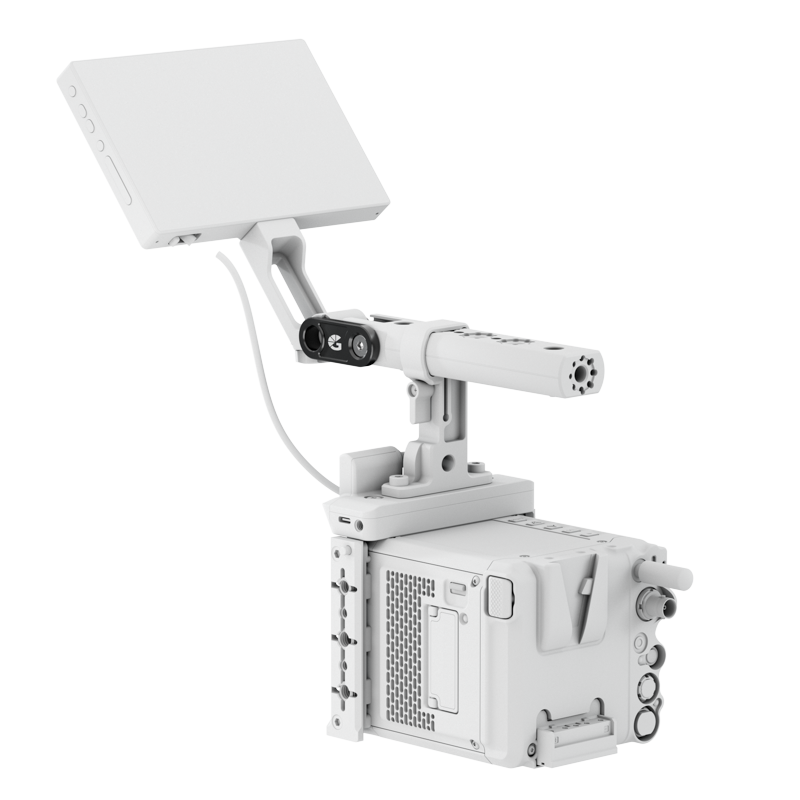

When installed via a single 3/8″ screw with anti-twist, the Monitor Mount sits discreetly: centred on your camera body. Tilt the bracket up and down using the locating pin holes, which allow you to position the monitor mount at 45-degree intervals.

Convenient Mounting

The DSMC3 Monitor attached via a 15mm bracket, which our monitor mount provides – allowing you to articulate the monitor further for additional placement possibilities.

Built to Last

The Monitor Mount for DSMC3 RED Touch is milled from a single sheet of aluminium, hard-anodised for added durability. This means that you can keep your monitor in place without added weight or worry, and shoot with ease.

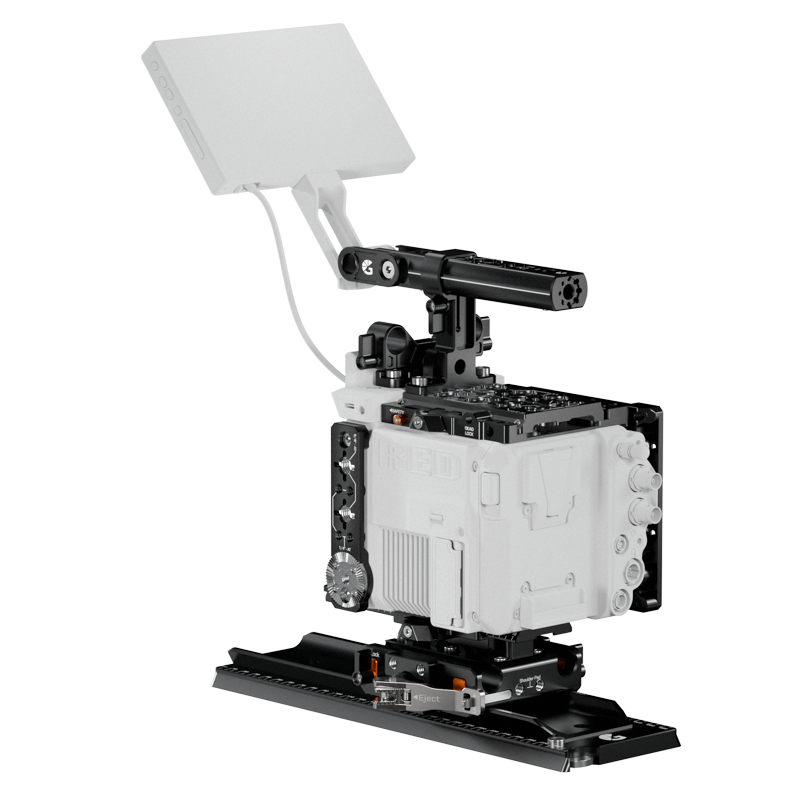

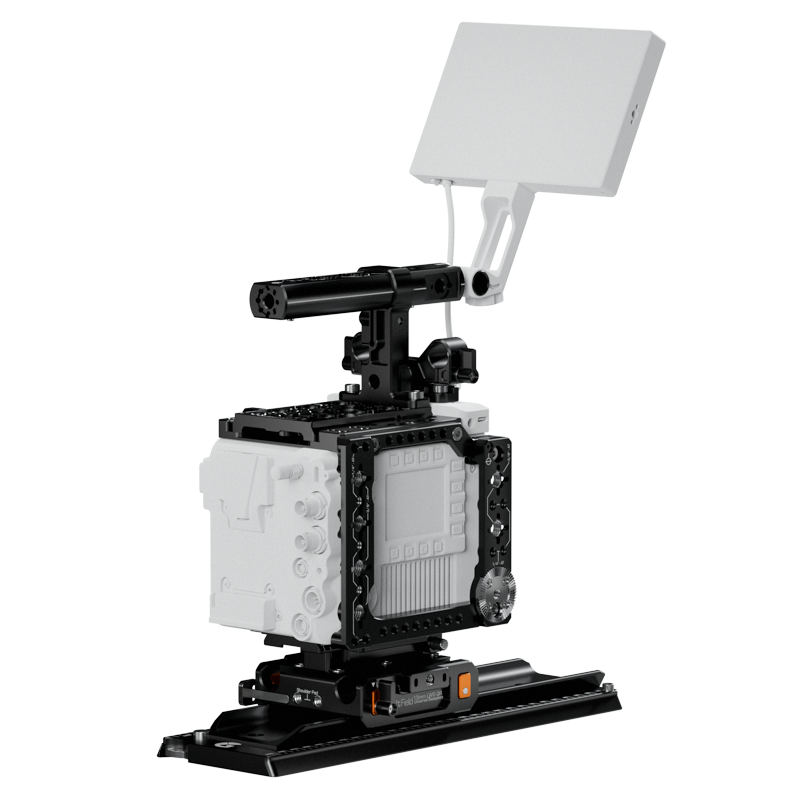

Part of the RED Camera System

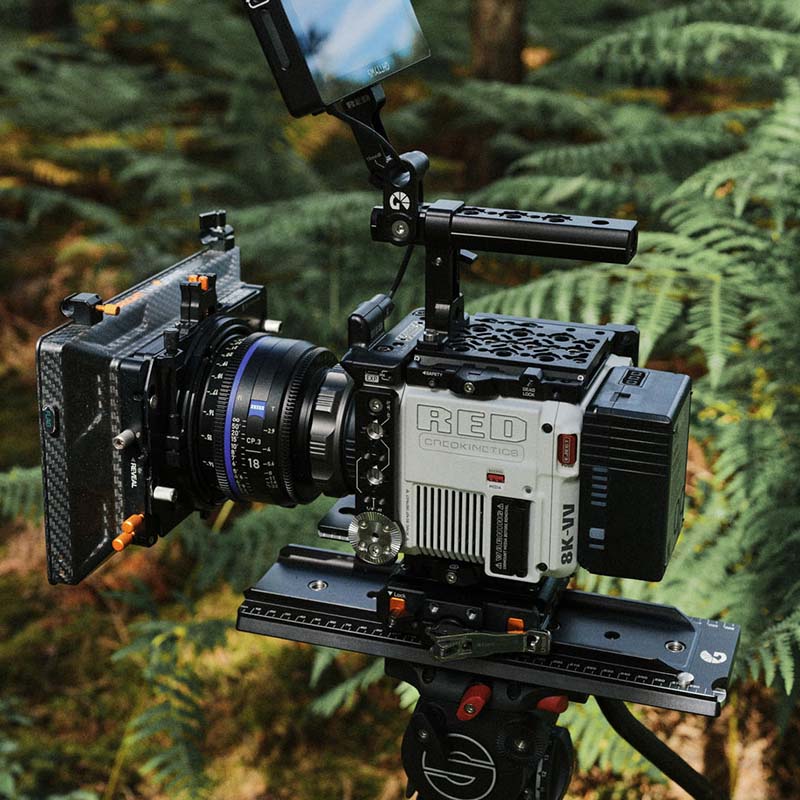

Enhance your RED rig with our range of essential accessories. Durable and lightweight, each component builds on your camera – whether that is the RED KOMODO, KOMODO-X or V-RAPTOR – and gives you new freedom for shooting.

Instructions/Assembly

Monitor Mount to Top Handle

1. To install the Monitor Mount to a compatible top handle, align the 3/8″ anti-twist points and locating pins with the corresponding threads on the top handle’s front.

2. Use a 4mm Hex Key to tightly secure it in place.

Monitor to Monitor Mount

1. For attaching the monitor, slide the RED DSMC3’s monitor bracket onto the corresponding 15mm stud of the Monitor Mount.

2. Use the lever clamp on the monitor bracket to tightly secure the two components.

Adjusting Monitor Mount Angle

1. To readjust the angle of your Monitor Mount, use a flathead screwdriver to remove the locating pins from the monitor mount and reinsert them into two opposing threads.

2. Reinstall the Monitor Mount to the top handle, ensuring that the locating pins are aligned.

Compatibility

The Monitor Mount for DSMC3 RED Touch is designed to work with our Sliding Top Handle, and the DSMC3 RED Touch monitor.
